In an era where visual impact defines success, the Amoonsky AX900 LED Video Controller redefines what’s possible with cutting-edge video processing and seamless control. Designed for AV professionals, event producers, and digital signage integrators in the U.S., UK, Germany, and beyond, the AX900 delivers unmatched flexibility, precision, and reliability for LED displays in entertainment, retail, broadcasting, and command centers.

Key Features of the AX900 LED Video Controller

1. Versatile Input & Output Connectivity

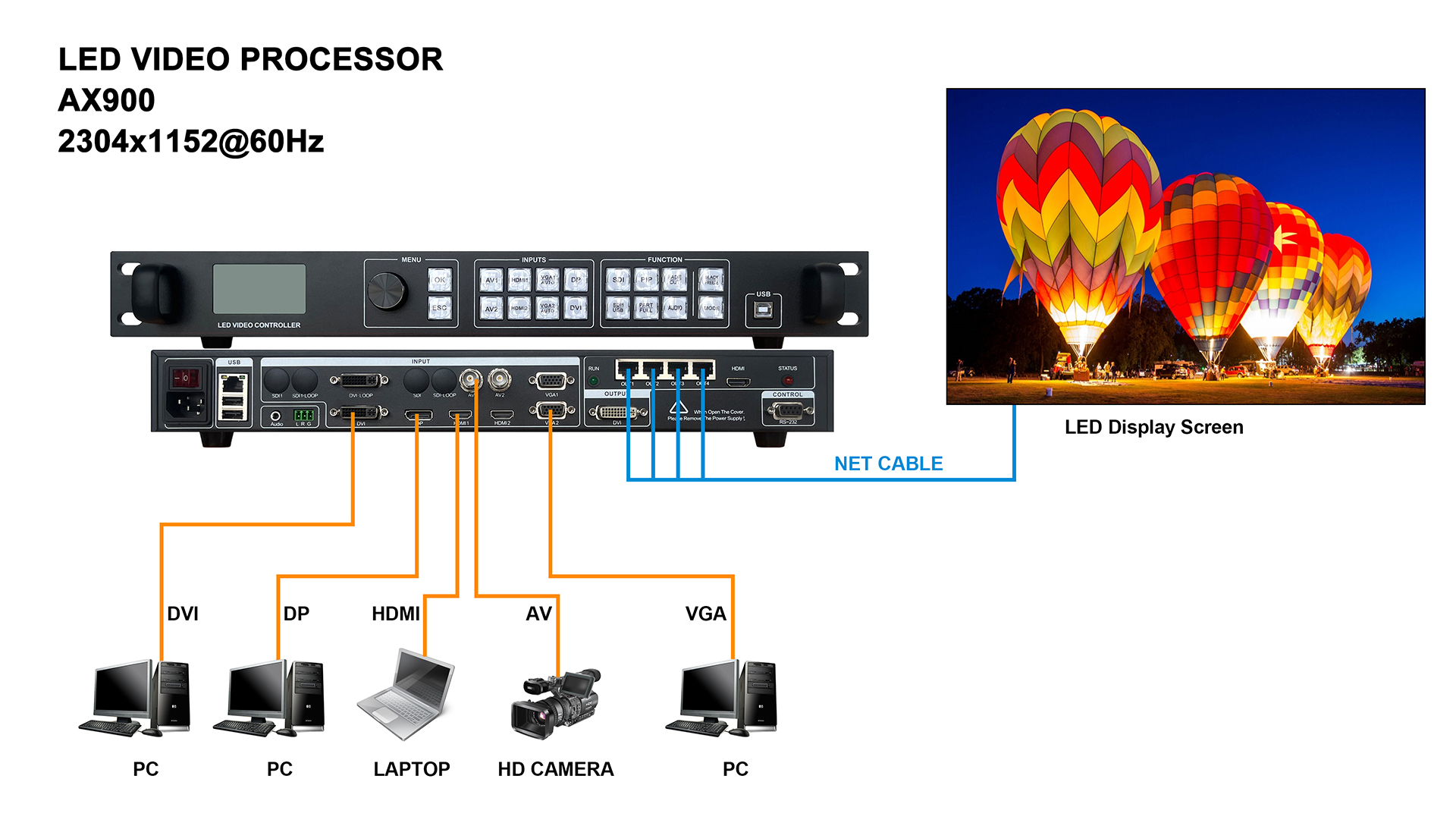

The AX900 supports 10 simultaneous video inputs, including:

• 2× HDMI

• 2× VGA

• 2× AV (CVBS)

• 1× DVI

• 1× DisplayPort

• Optional 3G-SDI, USB, or Wi-Fi

With 2 DVI outputs and 4× RJ45 network ports (integrated MSD600 sending card), it seamlessly integrates with any LED wall setup—perfect for large-scale installations like concert stages, airports, or broadcast studios.

2. Seamless Transitions & Real-Time Effects

Switch between sources instantly or use fade-in/fade-out transitions (0–5 seconds adjustable) for glitch-free performance. Ideal for live events, where timing and visual continuity are critical.

3. Advanced Picture-in-Picture (PiP) & Picture-outside-Picture (PoP)

Overlay secondary content without disrupting your main feed. Resize, reposition, and customize borders in real time—great for sports broadcasts, news tickers, or multi-source presentations.

4. Professional Display Control Tools

• One-Touch Black Screen: Instantly      blank output during live shows for quick adjustments.

• Screen Freeze: Pause frames while      switching inputs behind the scenes.

• Partial/Full-Screen Switching: Crop      and position content per channel independently.

• 4 User Presets: Save and recall      complex configurations via the MODE key.

5. Precision Image Processing Engine

• 30-bit Lossless Scaling: Scale up      to 10× (64–25,600 pixels) without quality loss.

• 34-Level GAMMA Curve: Adapt      brightness and contrast to any ambient lighting.

• ACC/ACM Color Filtering: Preserve      true-to-life colors with minimal processing artifacts.

• Exclusive Brightness Tech: Reduce      luminance without washing out color depth.

6. Smart Signal Detection & Auto-Save

The AX900 auto-detects active inputs (solid LED = signal present; flashing = no signal). Instant-save EEPROM technology stores settings automatically—no manual saving required, even after power outages.

7. Audio Decoding + Remote Control

Extract synchronized analog audio from HDMI, SDI, or USB inputs. Control brightness, resolution, and source switching via RS232 remote software for centralized system management.

8. Advanced Splicing for Complex Video Walls

Supports equal/unequal splicing with zero latency and frame-synced output across multiple controllers. Perfect for asymmetric LED walls in transportation hubs, control rooms, or immersive installations.

Real-World Applications

• Live Entertainment: Flawless scene      transitions at concerts, theaters, and festivals.

• Retail & Digital Signage:      Dynamic ad rotations with instant blackouts for brand safety.

• Broadcast Studios: Reliable PiP,      signal detection, and audio sync for live TV.

• Command Centers: Multi-source      monitoring with frozen frames and preset recalls.

• Education & Corporate: Engaging      lectures with partial-screen annotations and input flexibility.

• Transportation Hubs: Unified info      displays across airports, train stations, and terminals.

Why Choose the AX900?

• Built for Professionals:      Industrial-grade reliability with intuitive controls.

• Future-Proof Design: Supports 4K      resolutions and evolving display technologies.

• Global Compatibility: Trusted by AV      integrators in North America, Europe, and beyond.

Elevate Your Visual Workflow with the AX900

Whether you’re managing a stadium-wide LED wall or a high-stakes broadcast studio, the Amoonsky AX900 LED Video Controller empowers you to deliver pixel-perfect visuals with ease.

Ready to transform your LED display performance? Discover why top venues and enterprises rely on the AX900 for mission-critical applications.
